Toolly
Utility tools for Elsist controllers
Toolly is a set of utilities, free in a Windows™ environment designed for use predominantly with the controllers of the SlimLine and Netlog III, but not limited to, including utility and system diagnostic functions.
The tool can be installed on a PC under Windows™ (Version 7 or later).
Functions and utilities
List of functions in the "Utilities".
Terminal
Serial Terminal (RS232), TCP-IP(Client/Server) or UDP(Client/Server) emulation (configurable).

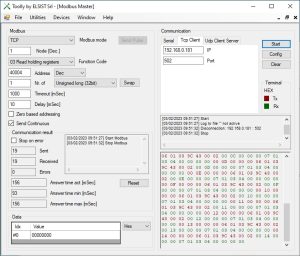

Modbus Master
Allows connection to Modbus servers in serial or Ethernet TCP/UDP.

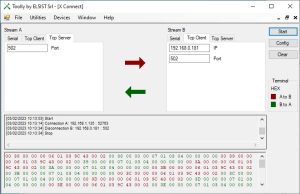

X-Connect
Redirects data from one device to another. Serial or TCP-IP(Client/Server) devices are supported.
It is possible, for example, to make a device with only a COM port accessible from the Internet.
Checksum
Performs checksum value calculation according to different standards.
Network Interfaces
Performs configuration display of all network interfaces on the PC.
Diagnostic functions
List of functions in the "Devices"

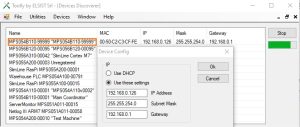

Discoverer (from version 3.1)
Especially useful for locating Elsist devices connected to the network and changing their settings without using serial ports.
CPU Catch
Performs "capture" of CPU modules from serial port to be used when the module can no longer be reached from Ethernet.

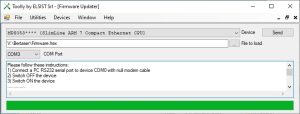

Firmware updater
Performs firmware update of CPU modules from serial port.
Many CPU modules allow firmware update directly from Ethernet connection, but the use of this utility allows firmware update in emergency conditions, in case the module cannot be reached.

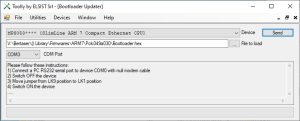

Bootloader Updater
Performs the update of the bootloader On CPU modules from serial line (ARM7 processor-based modules only).
